Center Height of Frame: H200~H315mm
Rated Power: 10KW~75KW
Rated Voltage: 380V,50Hz
(can be made by the customer’s requirements)
Protection Grade: IP54、IP55
Thermal Class: 155(F)
Cooling Type: IC411
Share
Outlines

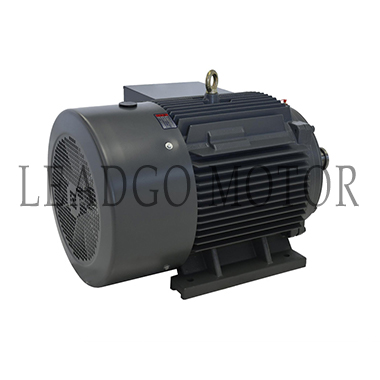

DYG series motor is pole-changing variable speed motor by specially designed winding to change the motor speed. It includes high starting torque multi-speed motor and control cabinet.
The motor has features of high starting torque, energy-saving, etc. It has two kinds of output speed and power, can achieve speed changing through switches in control cabinet. The control system is simple and reliable. The cabinet adopts special structure design, which has features of good short-circuit protection, overload protection, rain-leakage protection and theft-preventing. This series of motors is suitable for oil fields, mines and other fields of high starting torque and large torque loading situations.)
(Note: The control cabinet can be customized according to different requirements.)
Technical Data of DYG Series
|
Type |
Seed（r/min） |
Poles No. |
Rated Power (kW) |
EFF η（%） |
Power Factor（COSΦ） |
|
DYG200M |
1000/750 |
6/8 |
16/10 |
88/87 |
0.76/0.65 |
|
750/500 |
8/12 |
10/8 |
85/83 |
0.65/0.55 |
|
|
DYG200L |
1000/750 |
6/8 |
19/12 |
88/87 |
0.76/0.65 |
|
750/500 |
8/12 |
12/10 |
85/83 |
0.65/0.55 |
|
|
DYG225M |
1000/750 |
6/8 |
18/14 |
89/87 |
0.76/0.65 |
|
750/500 |
8/12 |
14/9 |
85/83 |
0.65/0.55 |
|
|
DYG225L |
1000/750 |
6/8 |
22/16 |
89/87 |
0.76/0.65 |
|
750/500 |
8/12 |
16/10 |
85/83 |
0.65/0.55 |
|
|
DYG250M |
1000/750 |
6/8 |
22/17 |
89/88 |
0.76/0.65 |
|
750/500 |
8/12 |
20/15 |
86/84 |
0.70/0.62 |
|
|
DYG250L |
1000/750 |
6/8 |
30/20 |
89/88 |
0.76/0.65 |
|
750/500 |
8/12 |
22/18 |
86/84 |
0.70/0.62 |
|
|
DYG280S |
1000/750 |
6/8 |
37/22 |
89/87 |
0.76/0.65 |
|
750/500 |
8/12 |
27/18 |
88/85 |
0.75/0.64 |
|
|
DYG280M |
1000/750 |
6/8 |
40/30 |
90/89 |
0.78/0.68 |
|
750/500 |
8/12 |
30/20 |
89/86 |
0.75/0.64 |
|
|
DYG280L |
1000/750 |
6/8 |
45/33 |
90/89 |
0.78/0.68 |
|
750/500 |
8/12 |
41/26 |
89/85 |
0.77/0.68 |
|
|
DYG315M |
1000/750 |
6/8 |
45/30 |
90/89 |
0.78/0.68 |
|
750/500 |
8/12 |
40/28 |
89/86 |
0.77/0.68 |
|
|
DYG315L1 |
1000/750 |
6/8 |
56/40 |
90/89 |
0.80/0.70 |
|
DYG315L2 |
1000/750 |
6/8 |
60/45 |
90/89 |
0.80/0.70 |
|
750/500 |
8/12 |
45/30 |
89/86 |
0.77/0.68 |
Outline and Mounting Dimensions
|
Frame No. |
Mounting Dimensions |
Outline Dimensions |
|||||||||||||
|
A |
A/2 |
B |
C |
D |
E |
F |
G |
H |
K |
AB |
AC |
AD |
HD |
L |
|
|
DYG200M |
318 |
159 |
305 |
133 |
55 |
110 |
16 |
49 |
200 |
18.5 |
395 |
420 |
315 |
475 |
790 |
|
DYG200L |
|||||||||||||||
|
DYG225M |
356 |
178 |
311 |
149 |
60 |
140 |
18 |
53 |
225 |
18.5 |
435 |
470 |
345 |
530 |
825 |
|
DYG225L |
855 |
||||||||||||||
|
DYG250M |
406 |
203 |
349 |
168 |
65 |
140 |
18 |
58 |
250 |
24 |
490 |
515 |
385 |
575 |
915 |
|
DYG250L |
|||||||||||||||
|
DYG280S |
457 |
228.5 |
368 |
190 |
75 |
140 |
20 |
67.5 |
280 |
24 |
550 |
580 |
410 |
640 |
985 |
|
DYG280M |
457 |
228.5 |
419 |
1035 |
|||||||||||
|
DYG280L |
|||||||||||||||
|
DYG315M |
508 |
254 |
457 |
216 |
80 |
170 |
22 |
71 |
315 |
28 |
635 |
645 |
576 |
865 |
1320 |
|
DYG315L |
|||||||||||||||
Note: Other voltages can be designed and made according to different customers’ requirements.
